Specifications:

Additional information

Weight 1360 g
Dimensions 212 × 167 × 43 mm
Wi-Fi

2.4GHz + 5GHz simultaneous dual-band

Interfaces

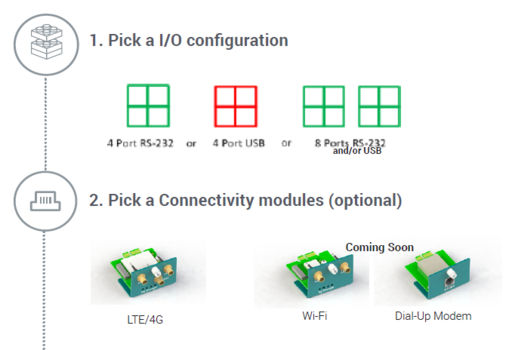

Dual Gb Ethernet or Dual Gb fiber SFP ports, Front Panel: Two (2) customer replaceable IO module slots for 4 port RS-232 (RJ45) 300 to 921600 bps, 4 port USB or 4 port Ethernet Switch, Two (2) customer replaceable connectivity module slots for LTE/4G cellular, Wi-Fi, or dial up modem out-of-band options, USB Host port, microSD/SDHC slot, RS-232 console

Power Supply

External power, 9-30 VDC

Power Voltage

9-30 VDC

Operating Temperature

0 to 50˚ C

Operating Humidity

30 to 90%RH, non-condensing

Manufacturer

Lantronix

Lantronix EMG 8500 Edge Management Gateway

Out of stock

Linkwave Part Number: 5423-01

Lights out management for branch offices & remote locations, a small factor Out of Bans solution.
The Lantronix® EMG™ 8500 – Edge Management Gateway is the perfect edge solution for branch offices, remote locations, retail stores or anywhere an offsite network device gateway is needed and space is limited.

  • Improve Business Continuity
    The EMG™ 8500 Edge Management Gateway is fully integrated into our range of out-of-band scalable solutions. With its modular design, the EMG™ enables users to place the product where it is most effective, alongside critical infrastructure in data centres, branch offices and remote sites. This solution delivers remote troubleshooting, resilience, and remediation to improve uptime and efficiency of networks to keep businesses running smoothly.
  • Quick Recovery from Downtimes
    An integrated automatic fail-over/fail-back mechanism allows users to connect to their network equipment even when the primary network connection is congested or unresponsive. The EMG can fail-over to a cellular 4G/LTE connection where all global carriers are supported with services such as Private APN, VPN access, public, and private IP addressing.
    Network Performance Monitoring with the support of IPSLA simulation traffic can ensure continuous and reliable network communication and help mitigate Lights Out scenarios
  • Cost-Effective Secure Connectivity – Anytime, Anywhere
    The EMG provides easy and secure administration and management of IT equipment from anywhere, at any time. Users can access the EMG device ports via Telnet/SSH, or a web browser-based console client without any proprietary software. Any IT asset that provides console or serial port management services can be managed remotely and locally. The EMG includes firewall features to reject or block unauthorized connection attempts. The EMG also has NIST-certified AES encryption.
  • Easy Centralized Management – ConsoleFlow™
    ConsoleFlow™ is Lantronix’s on-premise and cloud-based management platform for all deployed Lantronix edge management gateways and connected IT equipment. It offers a single pane of glass for centralized management and automated monitoring with real-time notifications. Mobile access from any iOS or Android platform provides secure access to your IT equipment.

  1. Lights Out Management (LOM)
  2. Field Replaceable Units (FRU’s)
  3. ConsoleFlow Software
