£19.75 ex VAT
In stock

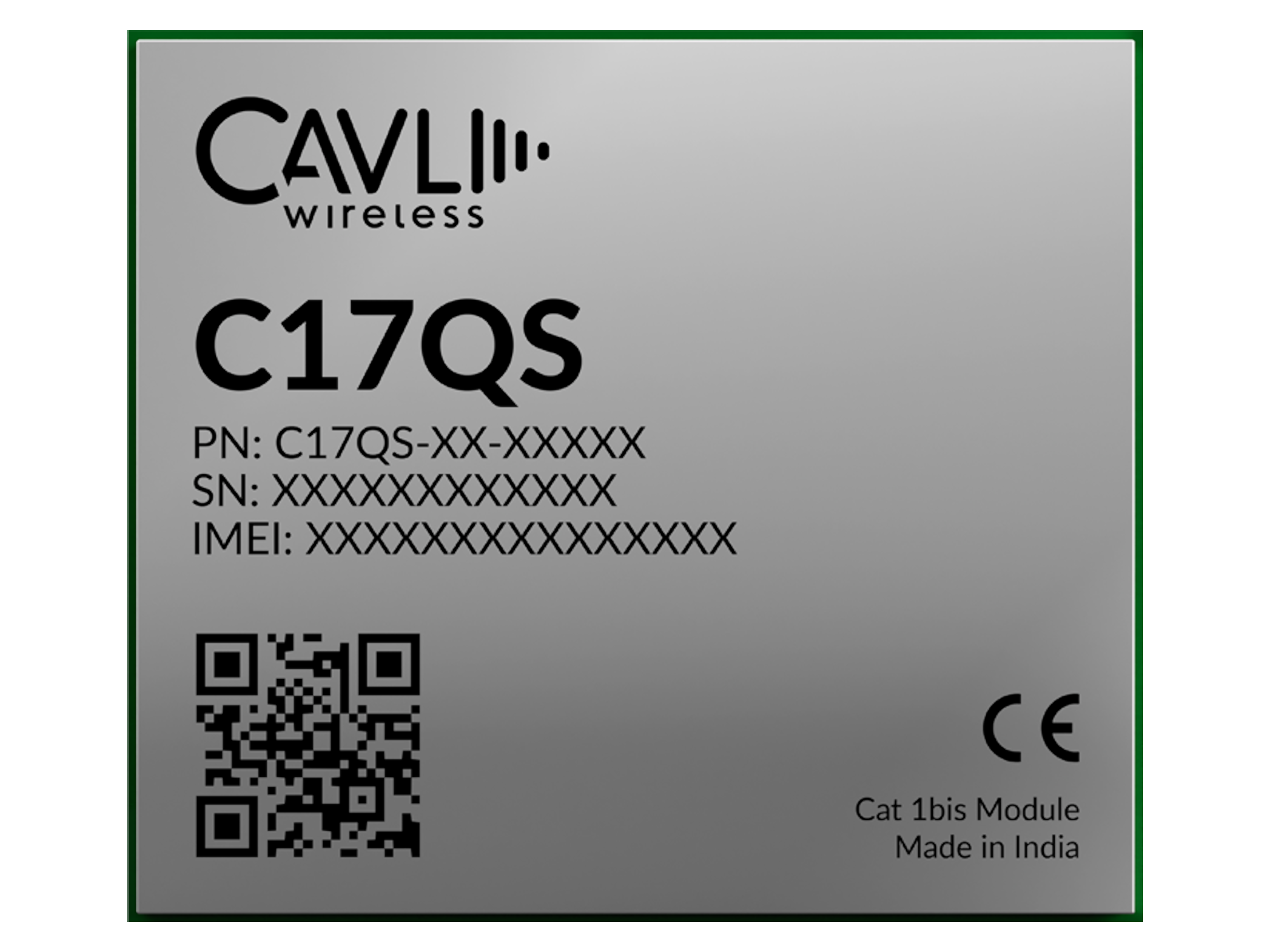

Cavli C17QS modules use their LTE Cat 1bis technology and optional GNSS tracking capabilities to simplify global connectivity and tracking solutions. With an optional integrated iSIM under development, C17QS is capable of ensuring remote monitoring and seamless global coverage. The module comes in a world-wide variant which can be deployed according to customer requirements. The C17QS series, with its power saving and DRx/eDRx modes, ensures prolonged life cycles in both battery powered and externally powered use cases.
The small form-factor and versatile interfacing capabilities ensure that C17QS is ideal for solutions requiring great connectivity and tracking capabilities – particularly those which are constrained by space and power limitations.
Basic Module Information
Basic Specification
| Processor: | ARM© Cortex™ M3 processor @ 306MHz clock |
| RAM: | 2MB |
| Flash: | 8MB |
| OS: | FreeRTOS with SDK |
Radio Technology
| RAT Used: | LTE Cat 1bis |
| 3GPP Release | 14 |
LTE Bands
| WW (World-Wide variant): | B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B14/ B18/ B19/ B20/ B25/ B26/ B28/ B34/ B38/ B39/ B40/ B41/ B66/ B71 (optional) |
| Other regional variants are available: (Contact Linkwave) |
Internet Protocols
| TCP(S), HTTP(S), MQTT(S), FTP(S), UDP, PPP |
Interfaces
| UART | x3 |
| USB 2.0 | x1 |
| GNSS UART2 | x1 |
| SWD | x1 |
| Network Status indicator | x1 |
| Power On Status indicator | x1 |
| ADC2 | x2 |
| I2S2 | x1 |
| I2C1 | x1 |
| SPI2 | x1 |
| GPIO2 | x8 |
| Main ANT | x1 |
| GNSS ANT2 | x1 |
| USIM (1.8v/3.0v) | x1 |
Packaging

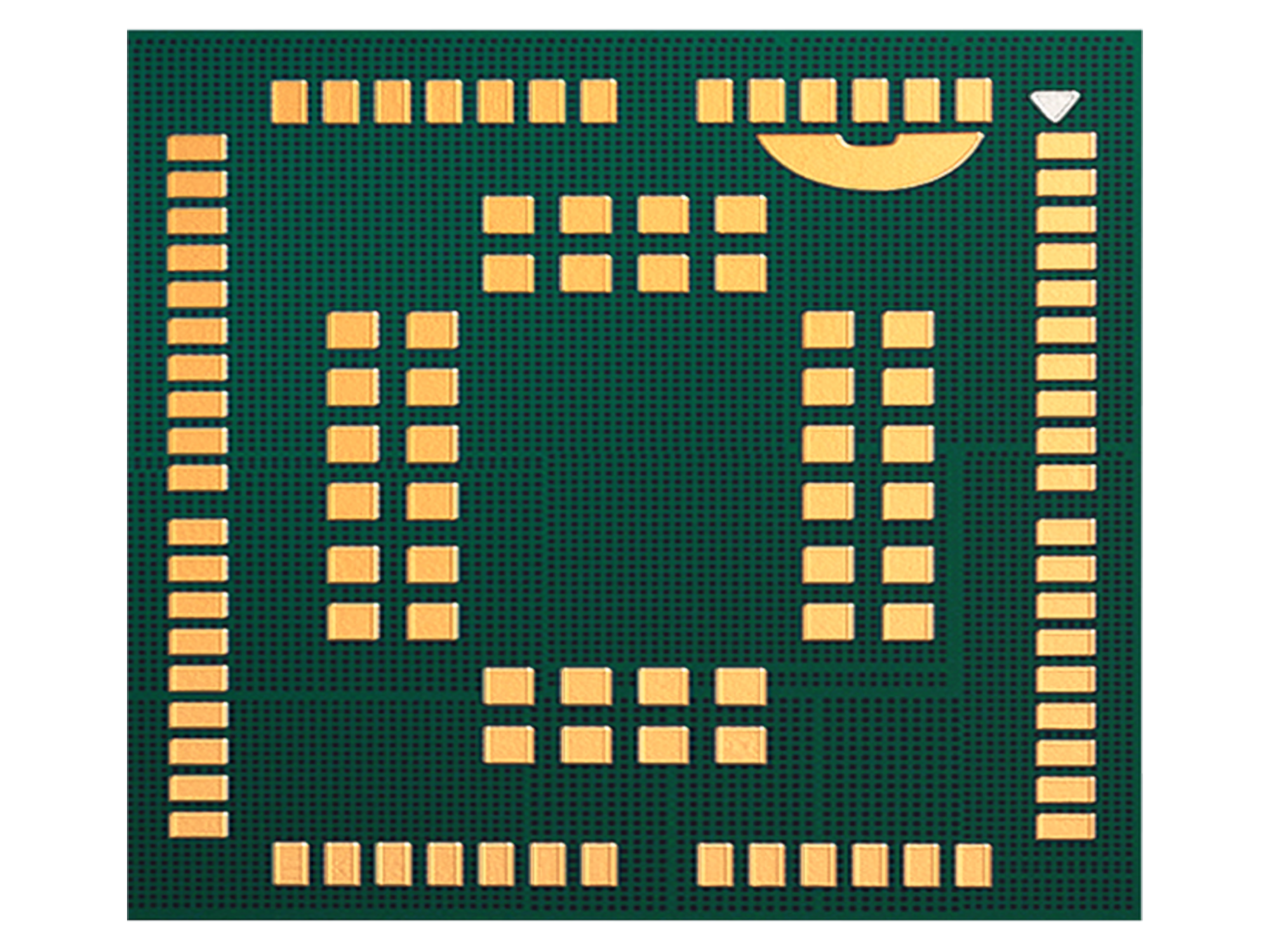

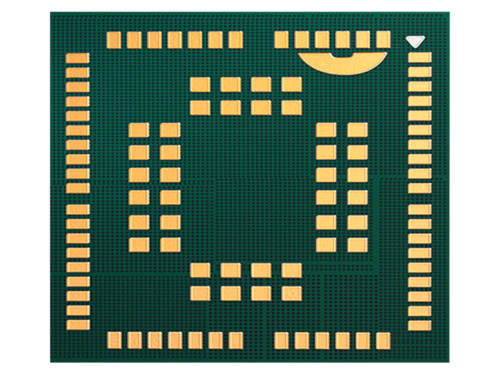

| Form Factor: | LGA |
| Dimensions: | 26.5 x 22.5 x 2.3(mm scale) |
| Pin Count: | 102 Pins |
| Weight: | 3.3g |
Network Speed (Peak Values)
| LTE Cat 1bis: | DL 10Mbps & UL 5Mbps |
Constellation Coverage
| GPS, GLONASS, Galileo, NavIC, BDS, SBAS and QZSS Capable |
Temperature Range
| Operating Temperature: | -40 C to +85 C |
Power Characteristics
| Voltage Range: | TBD |
| Typical Voltage: | 3.8V |
Applicable Region(s)
| EAJ, EU, NA, LA, AN, IN, WW |
Product Variants
| Variant Name | Region | Integrated eSIM | RAM | Flash |
| C17QS-WW-GNBNStock | Worldwide | x | 2MB | 8MB |
| Other variants: Contact Linkwave |
| Stock Item is stocked | * Contact Linkwave | 1 Optional | 2 Needs SDK | 3 In Progress | 4 Planned |
Features
Arm Cortex M3 upto 306MHz |
iSIM |
WiFi Scanning Support |
Low Power Consumption |
LTE Cat 1bis |
In-built GNSS |
Open SDK Support |
Free RTOS |
DFOTA Available |
USB 2.0 interface |
Small Form Factor Design |
Cavli Hubble Platform |
Applicable industries
Health Care & E-Health |
Retail |
Energy & Utilities |
Manufacturing |
Smart City |
Safety & Security |
Automotive & Logistics |
