Cavli Wireless C17QS LTE Cat 1bis IoT Module

Matt Fry — Mon, 04 Aug 2025 10:42:46 +0000

Cavli C17QS modules use their LTE Cat 1bis technology and optional GNSS tracking capabilities to simplify global connectivity and tracking solutions. With an optional integrated iSIM under development, C17QS is capable of ensuring remote monitoring and seamless global coverage. The module comes in a world-wide variant which can be deployed according to customer requirements. The C17QS series, with its power saving and DRx/eDRx modes, ensures prolonged life cycles in both battery powered and externally powered use cases.

The small form-factor and versatile interfacing capabilities ensure that C17QS is ideal for solutions requiring great connectivity and tracking capabilities – particularly those which are constrained by space and power limitations.

Basic Module Information

Basic Specification

Processor:	ARM© Cortex M3 processor @ 306MHz clock
RAM:	2MB
Flash:	8MB
OS:	FreeRTOS with SDK

Radio Technology

RAT Used:	LTE Cat 1bis
3GPP Release	14

LTE Bands

WW (World-Wide variant):	B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B14/ B18/ B19/ B20/ B25/ B26/ B28/ B34/ B38/ B39/ B40/ B41/ B66/ B71 (optional)
Other regional variants are available: (Contact Linkwave)

Internet Protocols

TCP(S), HTTP(S), MQTT(S), FTP(S), UDP, PPP

Interfaces

UART	x3
USB 2.0	x1
GNSS UART²	x1
SWD	x1
Network Status indicator	x1
Power On Status indicator	x1
ADC²	x2
I2S²	x1
I2C¹	x1
SPI²	x1
GPIO²	x8
Main ANT	x1
GNSS ANT²	x1
USIM (1.8v/3.0v)	x1

Packaging

Form Factor:	LGA
Dimensions:	26.5 x 22.5 x 2.3(mm scale)
Pin Count:	102 Pins
Weight:	3.3g

Network Speed (Peak Values)

LTE Cat 1bis:

DL 10Mbps & UL 5Mbps

Constellation Coverage

GPS, GLONASS, Galileo, NavIC, BDS, SBAS and QZSS Capable

Temperature Range

Operating Temperature:

-40 C to +85 C

Power Characteristics

Voltage Range:	TBD
Typical Voltage:	3.8V

Applicable Region(s)

EAJ, EU, NA, LA, AN, IN, WW

Product Variants

Variant Name	Region	Integrated eSIM	RAM	Flash
C17QS-WW-GNBN^Stock	Worldwide	x	2MB	8MB
Other variants: Contact Linkwave	Worldwide

^Stock Item is stocked

^* Contact Linkwave

¹ Optional

² Needs SDK

³ In Progress

⁴ Planned

The post Cavli Wireless C17QS LTE Cat 1bis IoT Module first appeared on Linkwave.

Semtech EM8695 5G RedCap / LTE CAT4 M.2 Module, Global, L1/L5 GNSS

admin — Sun, 20 Jul 2025 17:31:03 +0000

The migration of cellular networks from non-standalone (NSA) to standalone (SA) 5G introduces a major opportunity for IoT; the advent of RedCap devices.

The EM8695 is Semtech’s first-generation 5G RedCap module, compliant with 3GPP Release 17 Sub-6 and 3GPP Release 16 LTE radio performance. Supporting 25 worldwide 5G NR bands and 29 LTE bands, the EM8695 is ideal for global deployment with approval from multiple NAM, EMEA, and APAC carriers. Supporting USB 2.0 interface with enhanced uplink performance, high power user equipment (HPUE) features, and power saving features, the EM8695 is an ideal solution for customers looking to migrate from LTE CAT4/6 to 5G. For areas not yet covered by 5G SA, the EM8695 falls back to 4G, offering the benefits of RedCap where available while assuring reliable connectivity elsewhere.

The EM8695 supports 5G bands that are licensed for private 5G networks, making it a perfect choice for IoT developments intended for smart industry applications.

Full technical information for the EM8695 can be found here.

5G bands	n1, 2, 3, 5, 7, 8, 12, 13, 14, 18, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 71, 77, 78, 79
4G LTE bands	B1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 30, 34, 38, 39, 40, 41, 42, 43, 48, 66, 70, 71
Peak download rate	Up to 223 Mbps
Peak upload rate	Up to 123 Mbps
Location services	GNSS L1, L5 (GPS, Glonass, Galileo, BeiDou)
Firmware	Secure boot, pre-certified firmware
System drivers	Windows 10, Windows 11, Linux Driver, Android RIL
USB interface	USB 2.0 High Speed
Temperature Range	-30°C to +70°C (operating class A) -40°C to +85°C (operating class B)
Embedded eSIM	Optional

The post Semtech EM8695 5G RedCap / LTE CAT4 M.2 Module, Global, L1/L5 GNSS first appeared on Linkwave.

Cavli Wireless C10QM LTE CAT1 / 2G Cellular Module

Matt Fry — Sun, 13 Jul 2025 12:48:54 +0000

®The C10QM has been developed within the Cavli portfolio as part of a series of LTE Cat 1 modules that adhere to 3GPP release 10. With its LGA form factor, it offers pin compatibility with the C10GS LTE Cat 1/Cat 4 and C20QM LTE Cat 4 modules, allowing for flexible migration and interoperability. The C10QM module includes in-built GNSS featuring Qualcomm® IZat location technology Gen8C Lite, ensuring accurate and dependable positioning via GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS. Additionally, it offers support for VoLTE, and SMS over IMS/SG/CS, as well as compatibility with various internet protocols and standard industry interfaces that guarantee unbridled accessibility. The module comes in two variants: C10QM-EAJ for the Europe and Asia market, and C10QM-NA for the North America market. Additionally, with the help of the optional integrated eSIM powered by Cavli Hubble platform, the global connectivity on offer reduces time required to market. The C10QM module was designed with consideration for IoT and M2M applications, hence the module is well suited for tasks such as asset tracking, e-mobility, data loggers, fleet management, and environmental monitoring.

The C10QM module includes an application processor running a Yocto based linux distribution and is capable of supporting multiple peripheral devices. For volume applications, customer applications can be hosted. The SDK includes an API library for common functions and communication protocols, reducing appliciation development time.

The C10QM is available as an LGA package or as a PCIE minicard package. Please contact us for details.

Basic Module Information

Basic Specification

Processor:	ARM© Cortex-A7 @Speed up to 1.3GHz
RAM:	256 MB / 512 MB
Flash:	256 MB / 512 MB
OS:	Yocto Linux

Radio Technology

RAT Used:	LTE Cat 1 with 2G
3GPP Release	10

LTE Bands

NA:	B2/ B4/ B5/ B7/ B12/ B13/ B17/ B25/ B26/ B66
EAJ:	B1/ B3/ B5/ B7/ B8/ B18/ B19/ B20/ B26/ B28/ B38/ B40/ B41
GSM Bands:	900 / 1800 MHz

Internet Protocols

TCP(S), HTTP(S), MQTT(S), FTP(S), UDP, PPP⁴

Interfaces

UART	x3
USB 2.0	x1
SDIO 3.0	x1
SDC	x1
USIM	x1
JTAG	x1
Network Status indicator	x1
Module Status indicator	x1
SGMII	x1
PCM²	x1
I2C²	x1
SPI²	x1
GPIO²	x9
Main ANT	x1
GNSS ANT	x1
LCD_{(DBI 8-bit)}²	x1
ADC	x2

Packaging

Form Factor:	LGA
Dimensions:	37 x 21.8 x 2.8(mm scale)
Pin Count:	233 Pins
Other FF:	mPCIe

Network Speed (Peak Values)

Cat 1:	DL 10Mbps & UL 5Mbps
GSM:	DL 236.8Kbps & UL 236.8Kbps

Constellation Coverage

GPS/GLO/GAL/BDS with QZSS

Qualcomm Location Suite Gen 8 C lite

Temperature Range

Operating Temperature:

-30 ^oC to 85 ^oC

Power Characteristics

Voltage Range:	3.6V to 4.5V
Typical Voltage:	3.8V

	NA	EAJ
TxD Peak Current:	TBD	TBD
TxD Idle Current:	TBD	TBD
GNSS (Fix) Current:	90mA	90mA

Applicable Region(s)

EAJ, NA

Product Variants

Variant Name	Region	Integrated eSIM	RAM	Flash
C10QM-NA-22GNN*	North America	x	256MB	256MB
C10QM-NA-22GNN*		✓	256MB	256MB
C10QM-NA-24GNN*		x	256MB	512MB
C10QM-NA-24GNN*		✓	256MB	512MB
C10QM-EAJ-22GNN^Stock	Europe, Asia and Japan	x	256MB	256MB
C10QM-EAJ-22GNH*		✓	256MB	256MB
C10QM-EAJ-24GNN*		x	256MB	512MB
C10QM-EAJ-24GNH*		✓	256MB	512MB

^Stock Item is stocked

^* Contact Linkwave

¹ Optional

² Needs SDK

³ In Progress

⁴ Planned

The post Cavli Wireless C10QM LTE CAT1 / 2G Cellular Module first appeared on Linkwave.

Semtech AirLink XR60 Global 5G Router, 5+1Gbps Dual Ethernet

admin — Tue, 08 Jul 2025 10:58:36 +0000

Semtech® AirLink® XR60 5G routers are compact, intelligent and fully-featured communications platforms that provide real-time wireless capabilities for fixed and mobile applications. The XR60 is intended for use in fixed, industrial and mobile settings.

Rugged, IP64 rated, industrial grade router meeting stringent shock, vibration, temperature and intrinsic safety standards
One 1Gbps and one 5Gbps RJ45 Ethernet port
Up to 2.8Gbps downlink and 300Mbps uplink cellular data rates (subject to available network resources)
Up to 1200Mbps Wi-Fi data rates, with support for up to 32 clients
USB-C connector provides up to 5Gbps network client. XR60 can also be powered over USB-C for primary or redundant supply
Shares mounting hole pattern with RV50X, RV55 and RX55 to facilitate upgrade to 5G
Full range of 5G and 4G bands for public and private network support
Dual band GNSS offers accurate positioning with immunity from interference and jamming
Power connector provides additional functionality with a GPlO pin for remote monitoring and control, and an ignition sense pin to enable/disable the XR60

The XR60 hosts Semtech’s advanced Airlink OS, which provides advanced capabilities.

Policy based or event-based WAN routing capabilities
Multiple APNs allowing routing of data streams via different cellular services simultaneously
Container based edge computing using Docker for low latency, localised processing and optimal data usage
Full remote update and management capability

The AirLink XR60 router now includes 5 years of AirLink Complete:

5-year hardware warranty

5 years of technical support

5 years of remote device management through ALMS

Full technical documentation for the XR60 is available to download here.

The post Semtech AirLink XR60 Global 5G Router, 5+1Gbps Dual Ethernet first appeared on Linkwave.

SG Wireless F1/C Cellular Module BLE, WiFi, LTE CAT-M1/NB1/NB2

admin — Wed, 09 Apr 2025 14:50:58 +0000

The SG F1 Cellular Module packs a complete range of connectivity options, from Bluetooth Low Energy (BLE) and WiFi to 4G LTE CAT-M1/NB1/NB2, in a highly compact module. It supports MicroPython, running on a powerful ESP32 S3 processor and offers up to 27 I/O connections. Connections to a host PCA are made through castellated mounting holes, offering SMT friendly assembly. 2.4GHz Wi-Fi and BLE5.0 are standard. The F1 module supports two sleep modes, allowing standby operation down to 10uA.

Access to the SG Wireless Ctrl. cloud platform is facilitated by a ready to use Ctrl Cloud Platform client library.

The post SG Wireless F1/C Cellular Module BLE, WiFi, LTE CAT-M1/NB1/NB2 first appeared on Linkwave.

SG Wireless F1 Smart Module

admin — Wed, 09 Apr 2025 12:00:34 +0000

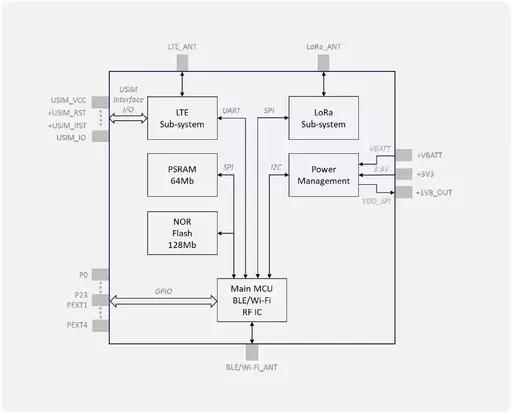

The SG F1 Smart Module packs a complete range of connectivity options, from Bluetooth Low Energy (BLE) and WiFi to LoRa(WAN)® and 4G LTE CAT-M1/NB1/NB2, in a highly compact module. It supports MicroPython, running on a powerful ESP32 S3 processor and offers up to 27 I/O connections. Connections to a host PCA are made through castellated mounting holes, offering SMT friendly assembly. 2.4GHz Wi-Fi and BLE5.0 are standard, as is LoRa (either RAW mode or LoRaWAN mode). The F1 module supports two sleep modes, allowing standby operation down to 10uA.

Access to the SG Wireless Ctrl. cloud platform is facilitated by a ready to use Ctrl Cloud Platform client library.

The post SG Wireless F1 Smart Module first appeared on Linkwave.

Robustel MG460 Maritime DNV Cyber Security Gateway

Chris Ryan — Mon, 24 Mar 2025 15:19:24 +0000

MG460: A new generation of industrial maritime gateway, DNV certified, compliant to IEC61162-460 and IEC60945 standards.

MG460 can be used as a gateway between on-board vessel equipment and external services (Cloud platforms, servers, etc).

Protects and secures navigational equipment. Offers a multilayer inspection firewall and network/transport layer access control based on addresses, ports and protocols.

Equipped with a powerful quad-core 1.6 GHz CPU, 64 GB eMMC Flash, and a Debian Linux OS, enabling it to run complex applications and facilitate software deployment.

5 Gigabit Ethernet ports (each with its own firewall), 2 software configurable serial ports, 2 digital inputs, 2 relay outputs, and 3 protected USB ports.

The post Robustel MG460 Maritime DNV Cyber Security Gateway first appeared on Linkwave.

Robustel R5010 High Speed 5G Router

Ian Burt — Tue, 13 Aug 2024 16:46:56 +0000

The R5010 is Robustel’s new 5G capable router supporting global 5G, 4G and 3G bands. The R5010 leverages our tried and tested high-performance RobustOS 5 – an Operating System developed in-house by Robustel that has passed extensive 3rd party penetration testing.

Primary Broadband – Cellular network operators can now provide unlimited 5G tariffs at very reasonable prices. For many, a chance to cut the cables and use a wireless internet connection can be technically or commercially favourable.

SD-WAN – whilst many appliances have cellular options built-in, the R5010 can offer a very low-cost way to add a 5G backup route & by virtue of being able to be located externally to the appliance, is more likely to get a good 5G signal!

The post Robustel R5010 High Speed 5G Router first appeared on Linkwave.

Robustel R1520LG LoRaWAN Gateway

Ian Burt — Sun, 12 May 2024 08:37:39 +0000

R1520LG, Robustel’s next-generation LoRaWAN gateway, excels in dense indoor environments with robust 4G/3G/2G and WiFi support. Integrated with the Chirpstack LoRa network server, it efficiently manages traffic. Featuring 2 x Ethernet, 1 x RS232, and 1 x RS485, along with POE-PD, it’s ideal for smart buildings and industrial IoT, ensuring reliable connectivity.

R1520LG is Robustel’s new and unique LoRaWAN gateway, optimized for high-volume in-building applications. The product has been designed to be very cost-effective and extremely versatile – providing a solution for all deployment scenarios including:

External LNS with a choice of packet forwarders – UDP / Basic Station / Loriot
Internal LNS (Chirpstack) with full customer control
Internal LNS (Chirpstack) + “E2C Chirpstack” – NEW & UNIQUE!
Robustel’s “E2C Chirpstack” software connector allows LoRa sensors to be connected directly to AWS & Azure cloud environments.
E2C Chirpstack can be used alongside E2C Modbus in the R1520LG to easily get data from wired and wireless sensors into the cloud.

RCMS is Robustel’s free router monitoring service fully compatible with the R1520LG. It allows customers to see a location overview of their routers quickly and simply on a map. Features such as data usage, signal strength, current network and much more can then be viewed per router. Over-the-air updates are supported for Firmware, router configuration and Apps serving as essential “insurance” if anything is not quite right during deployment. You can try Robustel’s free router management platform by signing up here: https://rcms-cloud.robustel.net

The post Robustel R1520LG LoRaWAN Gateway first appeared on Linkwave.

Cavli Wireless C16QS LTE CAT1bis Module, Global, GNSS with eSIM and 1 Year Connectivity

Ian Burt — Wed, 20 Mar 2024 11:23:40 +0000

C16QS is an LTE Cat 1.bis module that complies with 3GPP release 14 specifications, specifically designed for IoT and M2M applications. It offers support for optional integrated GNSS, making it well-suited for location-tracking applications. Additionally, it provides the option of an integrated eSIM, enabling global connectivity through the Cavli Hubble Device and connectivity management platform. The C16QS module is available in five variants tailored for specific regions: C16QS-EA for EMEA and APAC regions, C16QS-NA for the North American region, C16QS-LA for the Latin American region, C16QS-AN for the Australia and New Zealand regions, C16QS-WW for Global use-case. It maintains pin compatibility with Cavli C42GM and C42QM modules. With its focus on low power consumption, the C16QS module is an excellent choice for IoT applications such as e-mobility, asset tracking, POS devices, telematics, and more. Includes eSIM Includes 1 year of connectivity

The post Cavli Wireless C16QS LTE CAT1bis Module, Global, GNSS with eSIM and 1 Year Connectivity first appeared on Linkwave.
